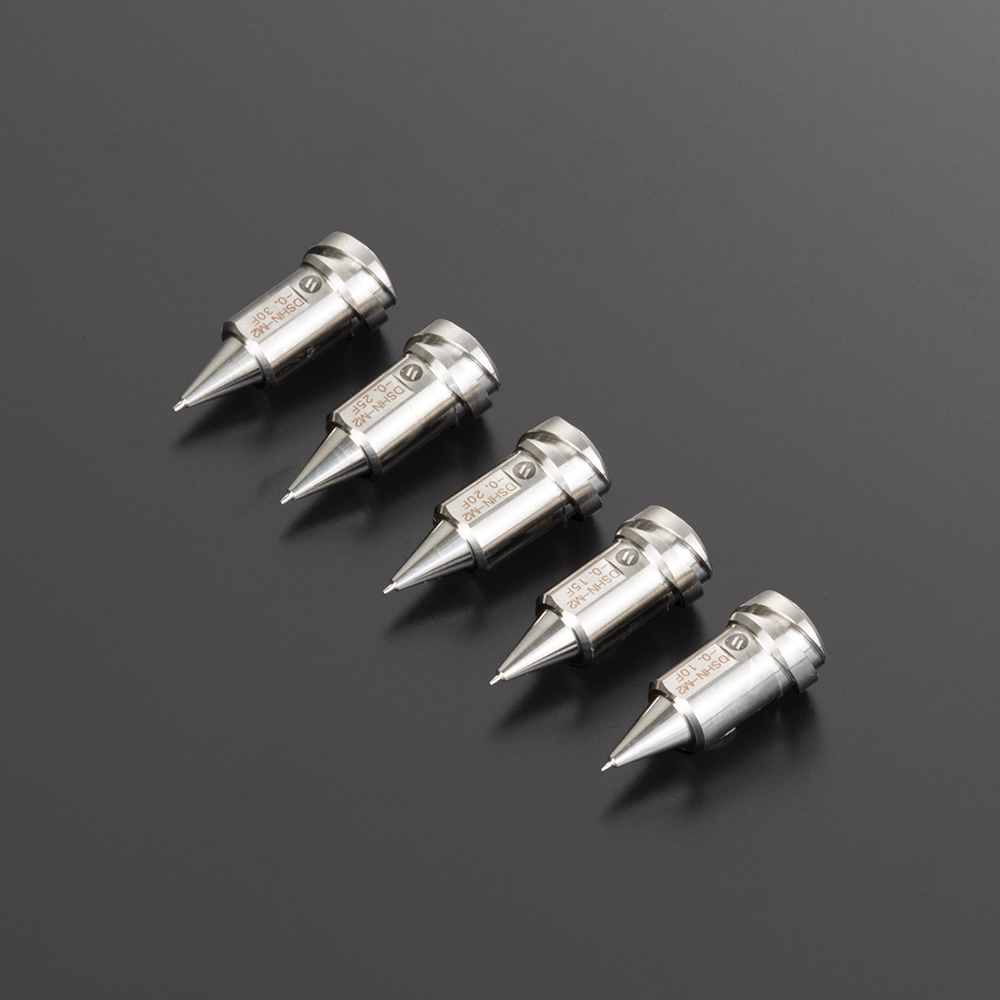

Double thread screw precision solid nozzle
No clogging, achieving micro dispensing.
- High Tact: Tact time is 1/5 of that of conventional models.
- High-stability: Solder/Ag paste dispensing “Without clogging”
- Micro dispensing: Microfabrication at the tip of the nozzle
Needle material:
Stainless steel

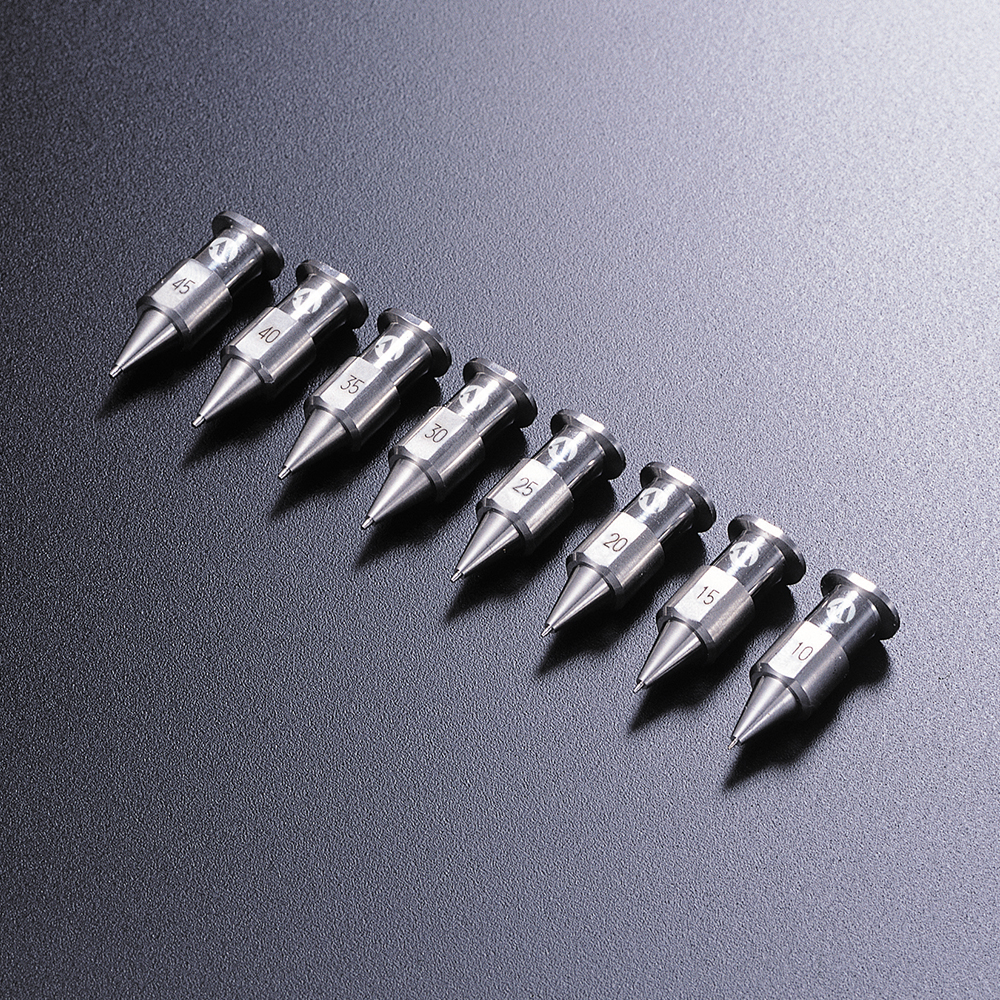

Precision solid nozzle
Micro volume dispensing with high stability achieved thanks to integral nozzle structure.
The integral structure eliminates the operation of nozzle mounting to the needle base. Excellent flowability thanks to the tapered shape. Ultra-thin processing of needle tip actualizes high-precision dispensing with high stability in small volume.
Needle material:
Stainless steel

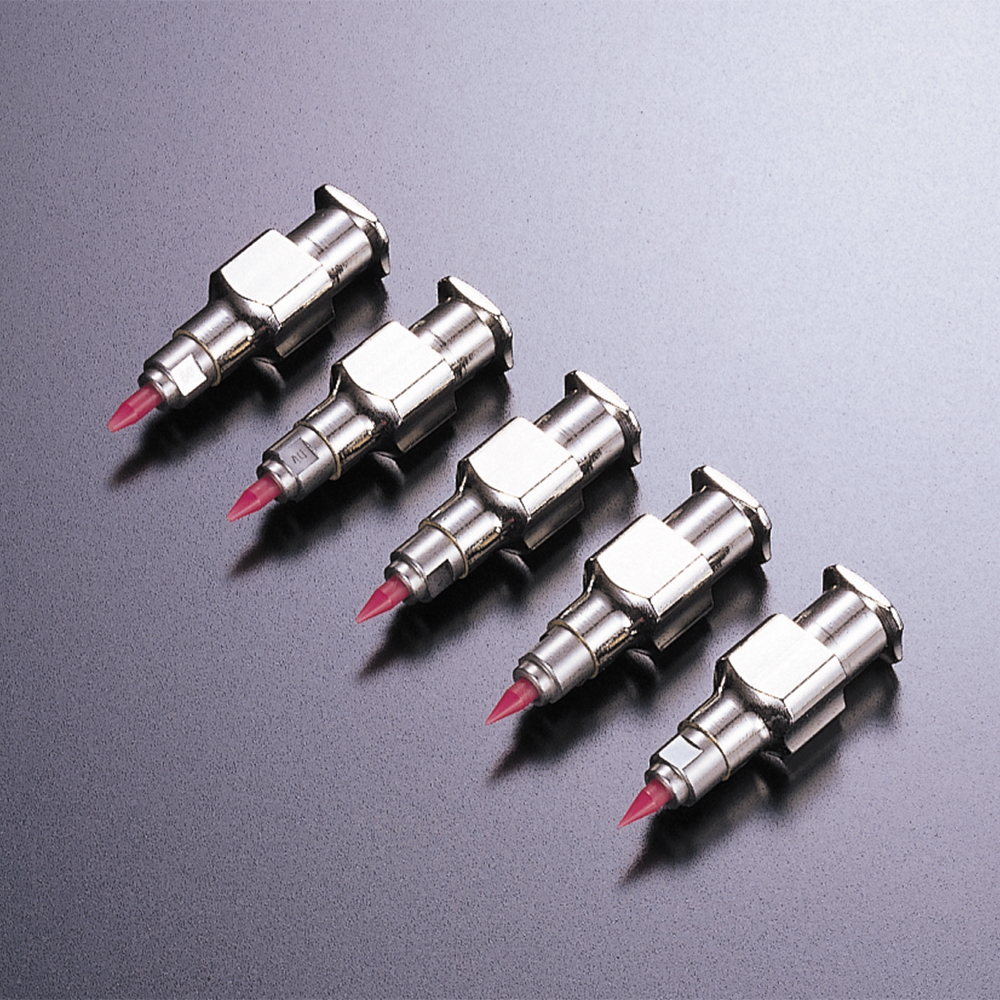

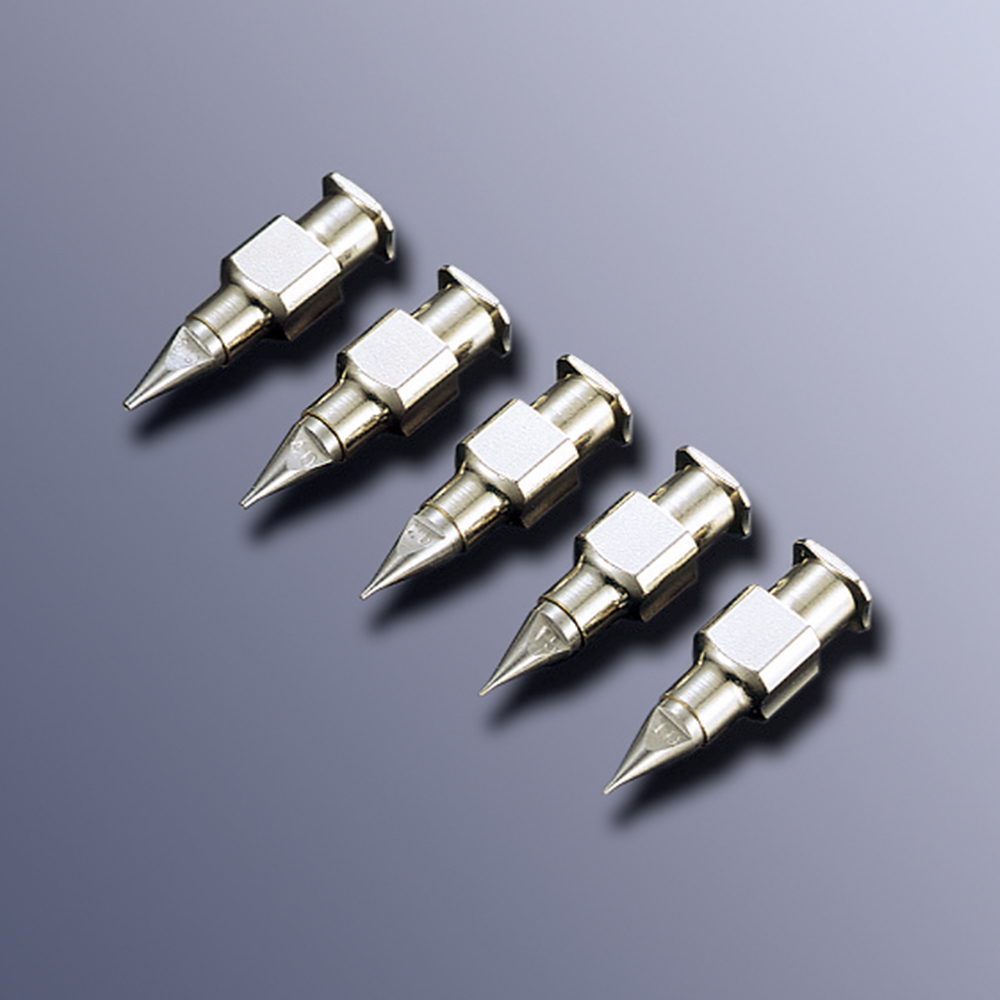

Precision nozzle
Stable dispensing of fluids containing filler.
Ideal for high-precision micro-dispensing.
Needle material:
Stainless steel
Needle base material:
Brass (Nickel plate) [Luer lock type]
Stainless steel [Double thread screw type
Super-fine nozzles
Micro-dispensing available from as small as ϕ10 μm onwards
Combined use with MUSASHI Dispenser realizes ultra-small dots dispensing and ultra-high definition drawing.
Needle base material :
Brass (Nickel plate) [Luer lock type]
Stainless steel [Double thread screw type]

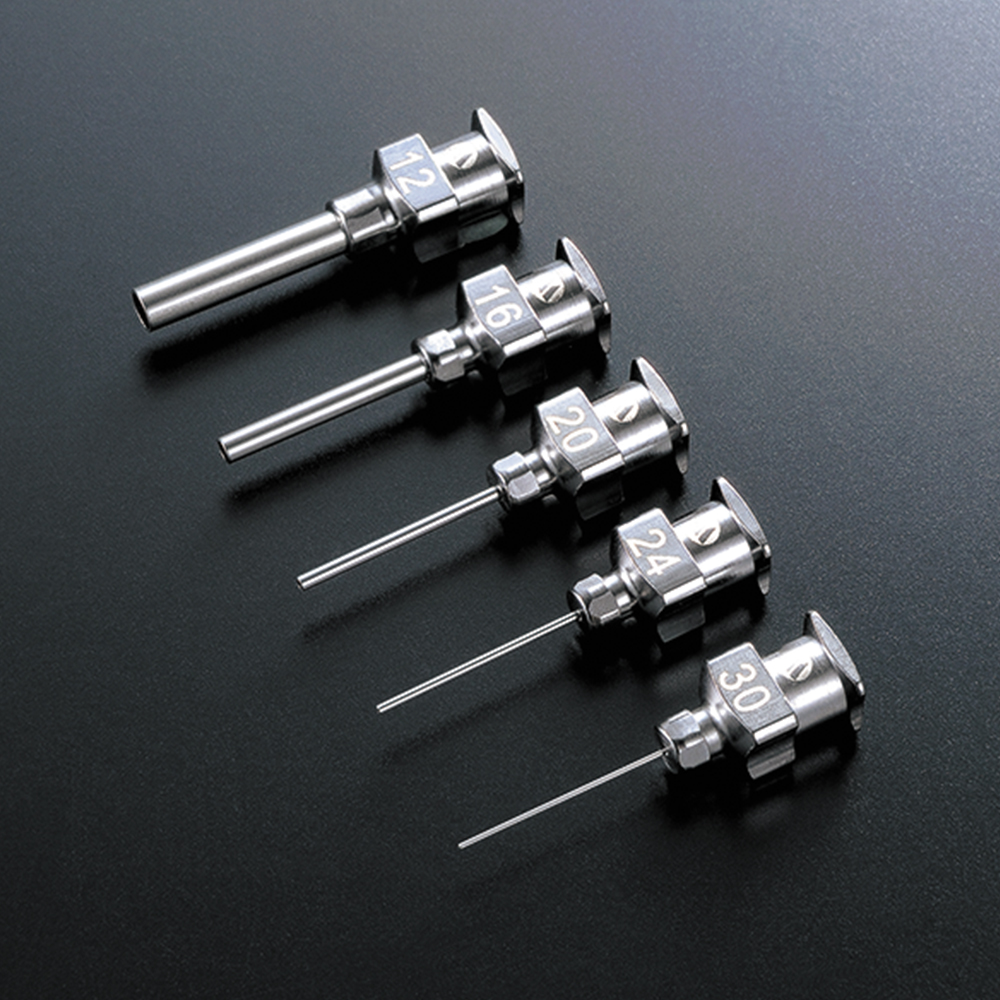

Metal needle
Versatile standard metal needle
Durable stainless steel metal pipes are used. Wide lineup for various dispensing shapes.
Needle material:
Stainless steel
Needle base material:
Brass (Nickel plate)

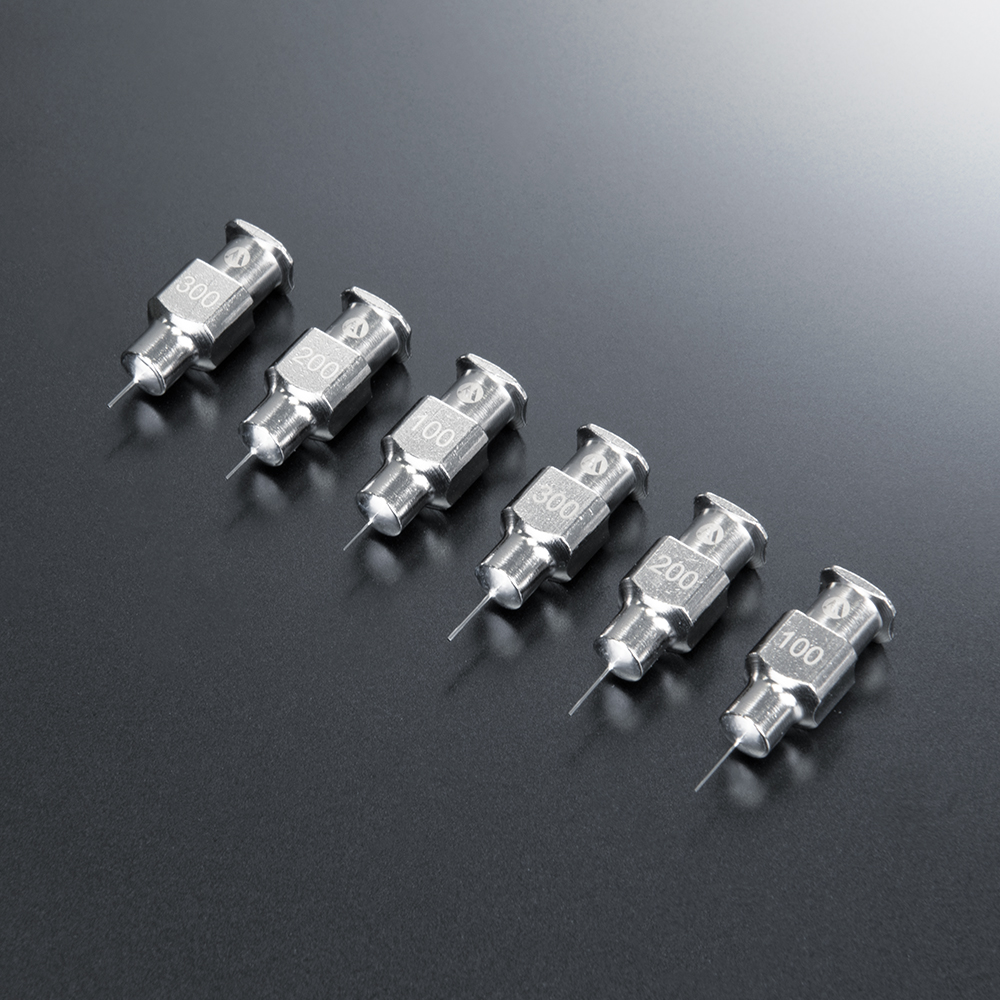

Thin metal needle
Needle material:
Stainless steel
Needle base material:
Brass (Nickel plate)

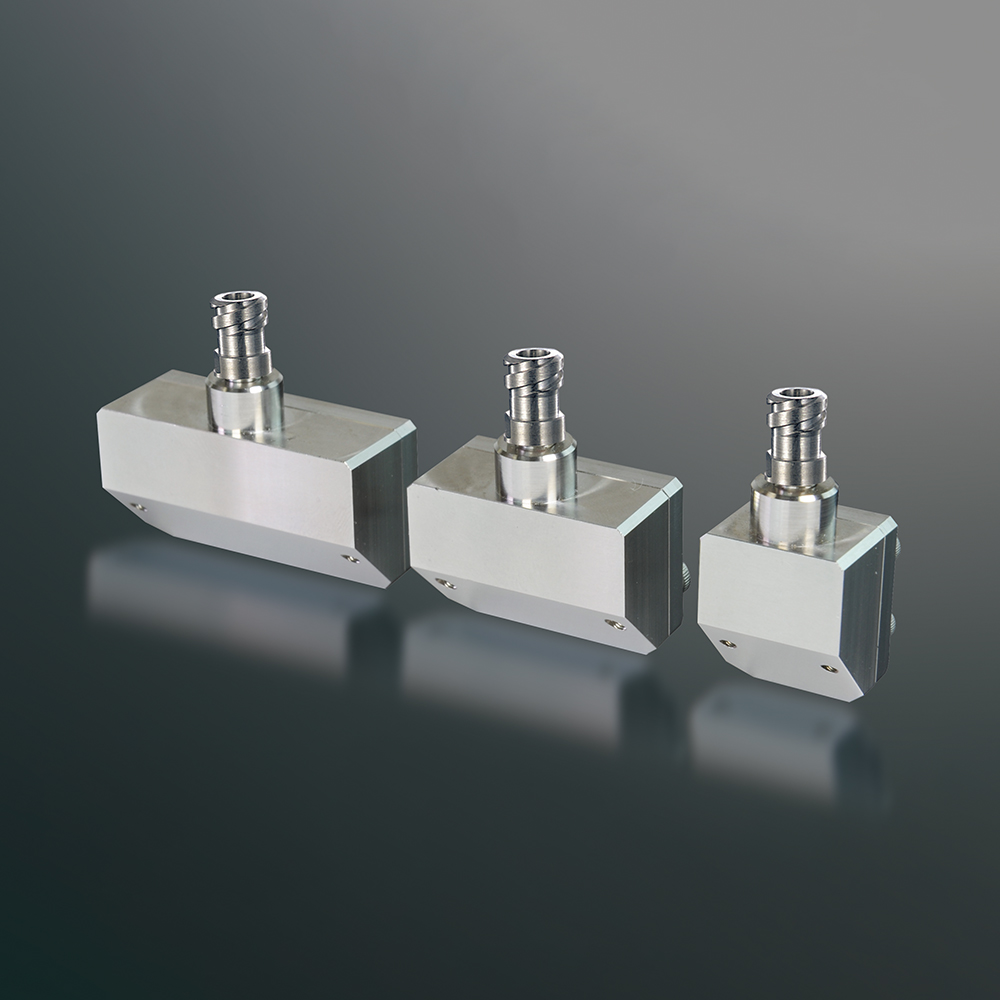

Slit nozzle
Ideal for uniform surface dispensing
One-pass surface dispensing and film formation.
Capable of forming thin films with thicknesses of several hundred micrometers or less.

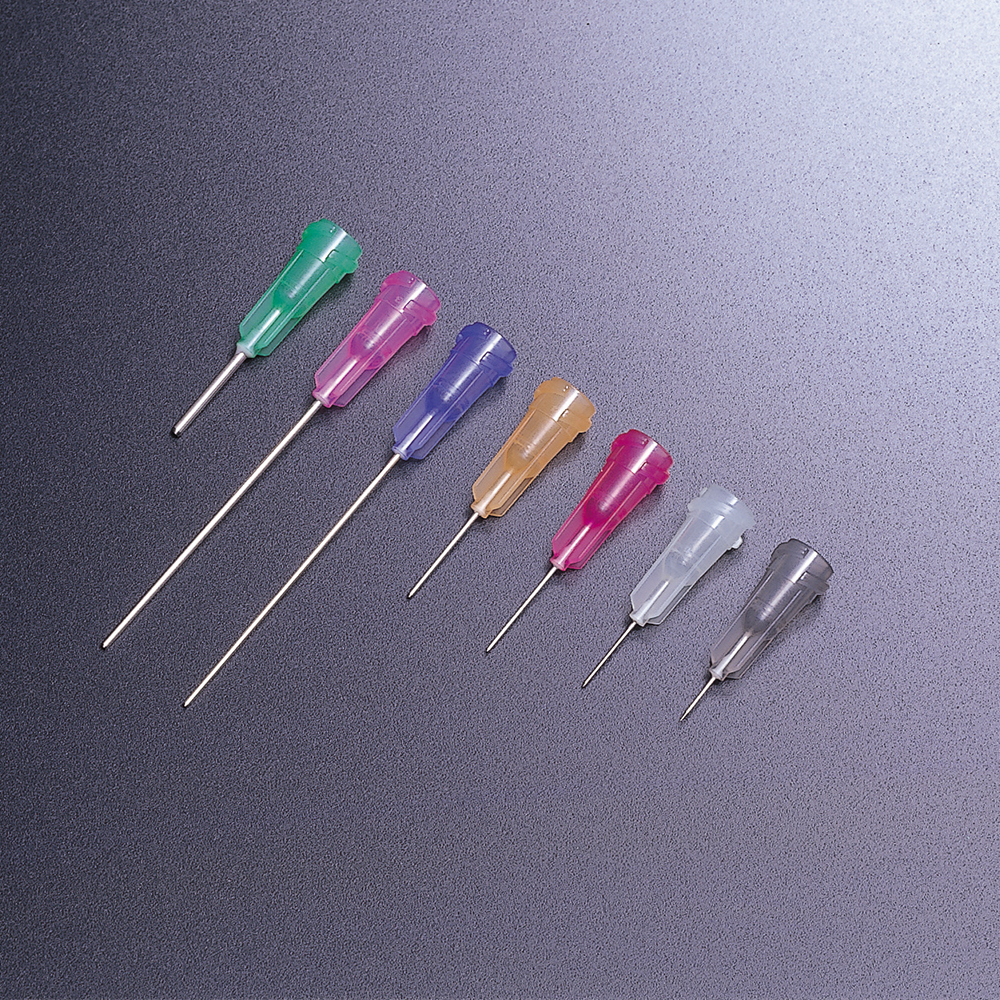

Sharp needle
Needle tip sharpening process realizes Micro Dispensing.
High-precision tapered shape of needle tip enables micro-dispensing.Double thread screw design allows the needle to be installed securely on the syringe.
Needle material:
Stainless steel
Needle base material:
Polypropylene

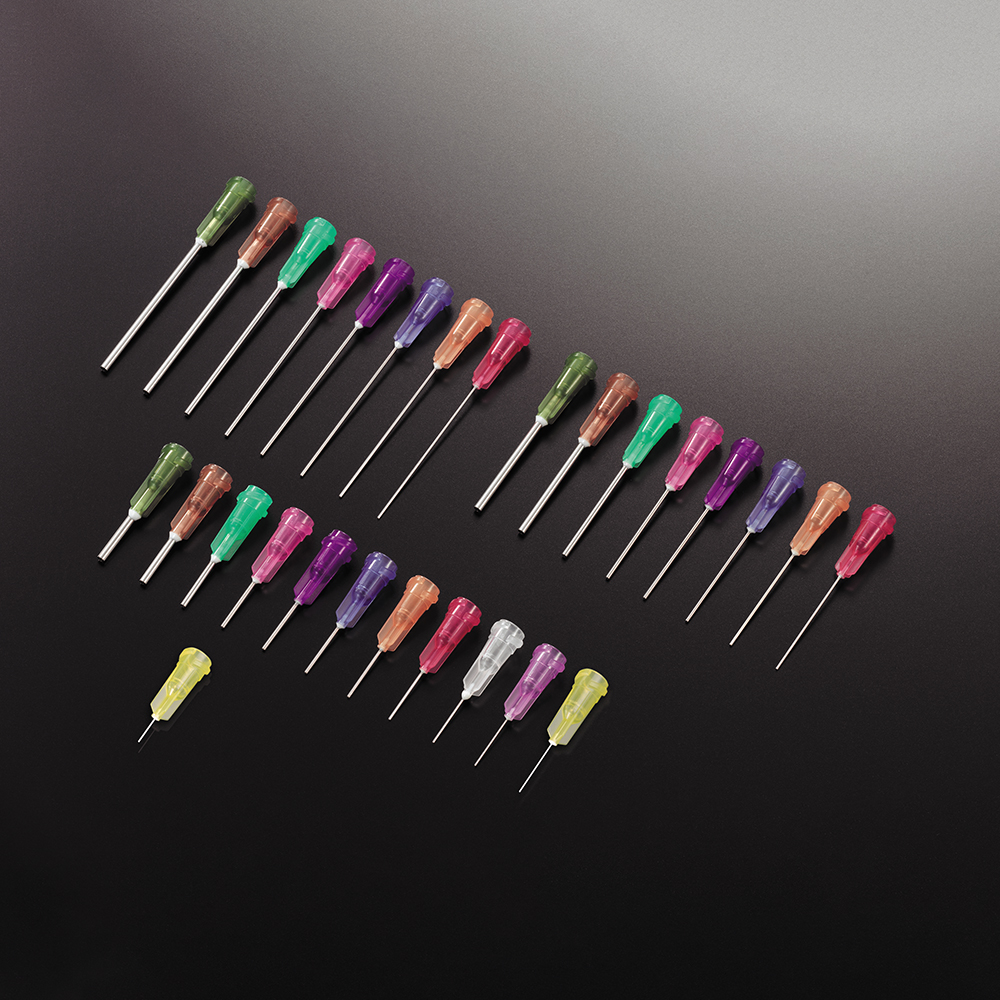

Double thread screwed plastic needle
Safe and secure attachment into a syringe with double thread screwed needle design
Double thread screw design allows the needle to be installed securely on the syringe.
A variety of needle lengths and gauges increases range of dispensing applications.
Needle material:
Stainless steel
Needle base material:
Polypropylene

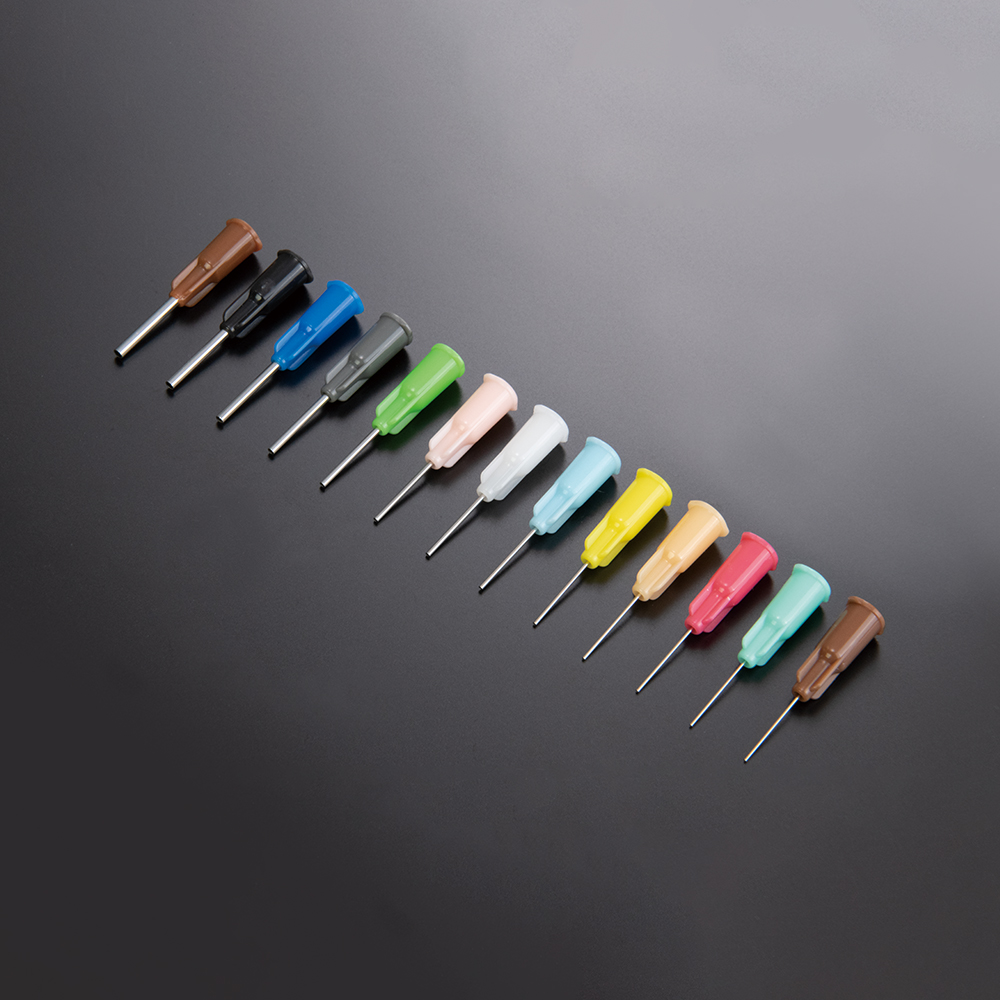

Plastic needles
Inexpensive disposable type
Needle with a plastic base.
Needle material:
Stainless steel
Needle base material:
Polyacetal

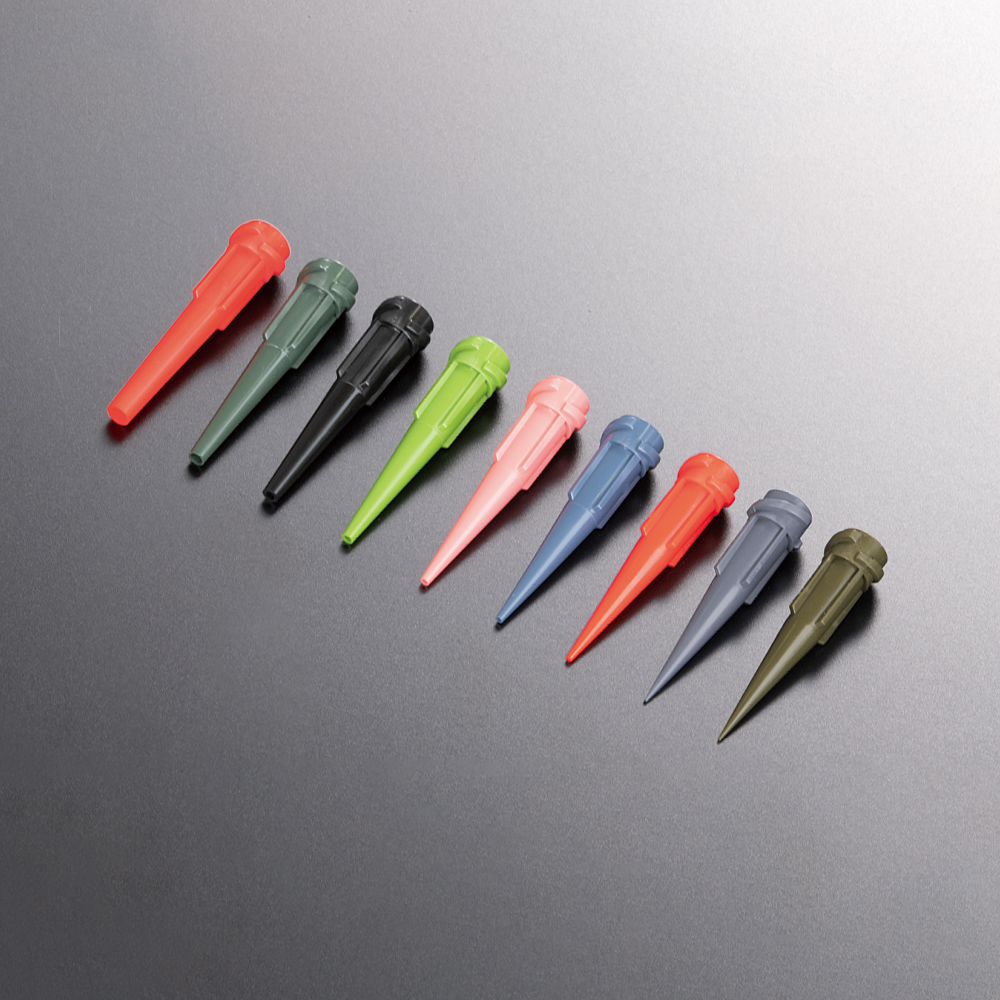

Double thread screwed tapered nozzle
Compatible with UV materials. Best suited for high viscosity fluid materials.
High flowability of fluid materials makes it ideal for dispensing high-viscosity materials and filler containing materials. Resin material does not damage the workpiece even if it interferes with it.
Material:
Polyethylene

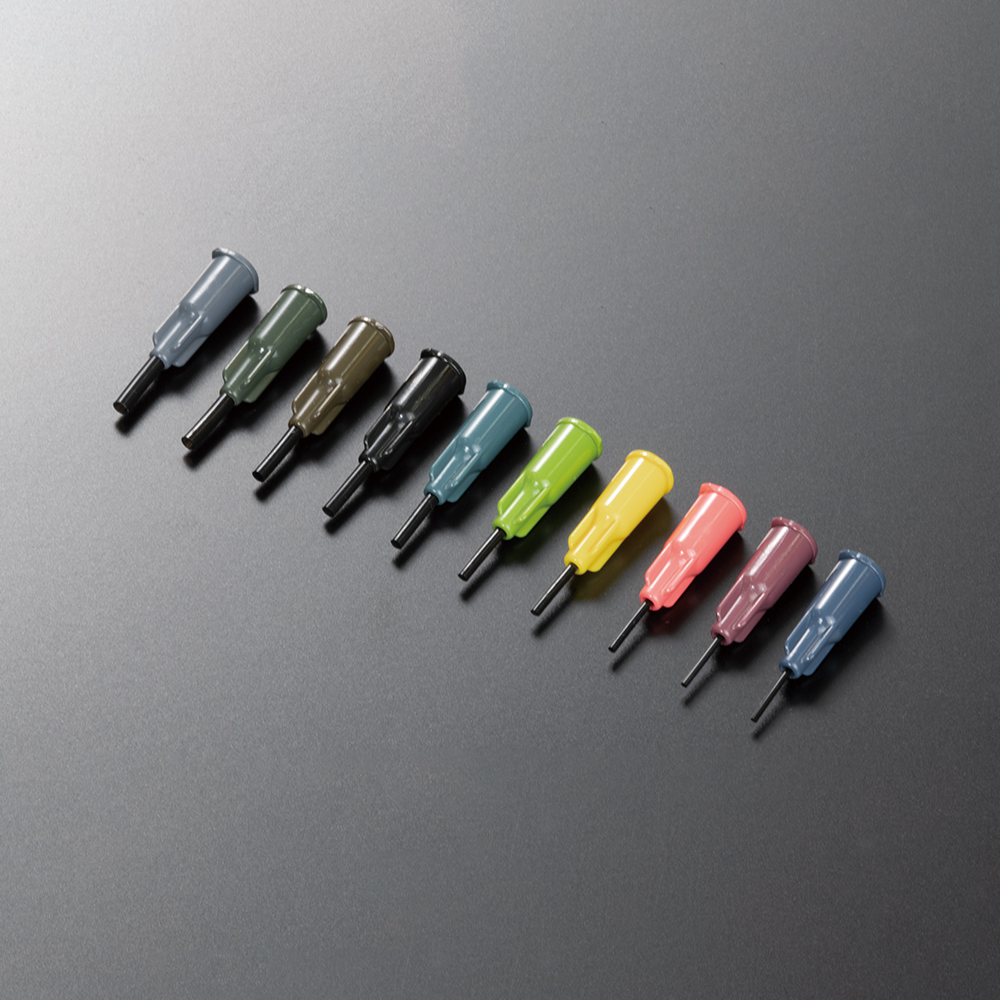

UV-block PTFE nozzle
Versatile standard metal neeIdeal for dispensing anaerobic fluid materials. Needle length can be specified.dle
For UV materials where metal needles cannot be used.
Needle material:
Fluorine resin
Needle base material:
Polyacetal

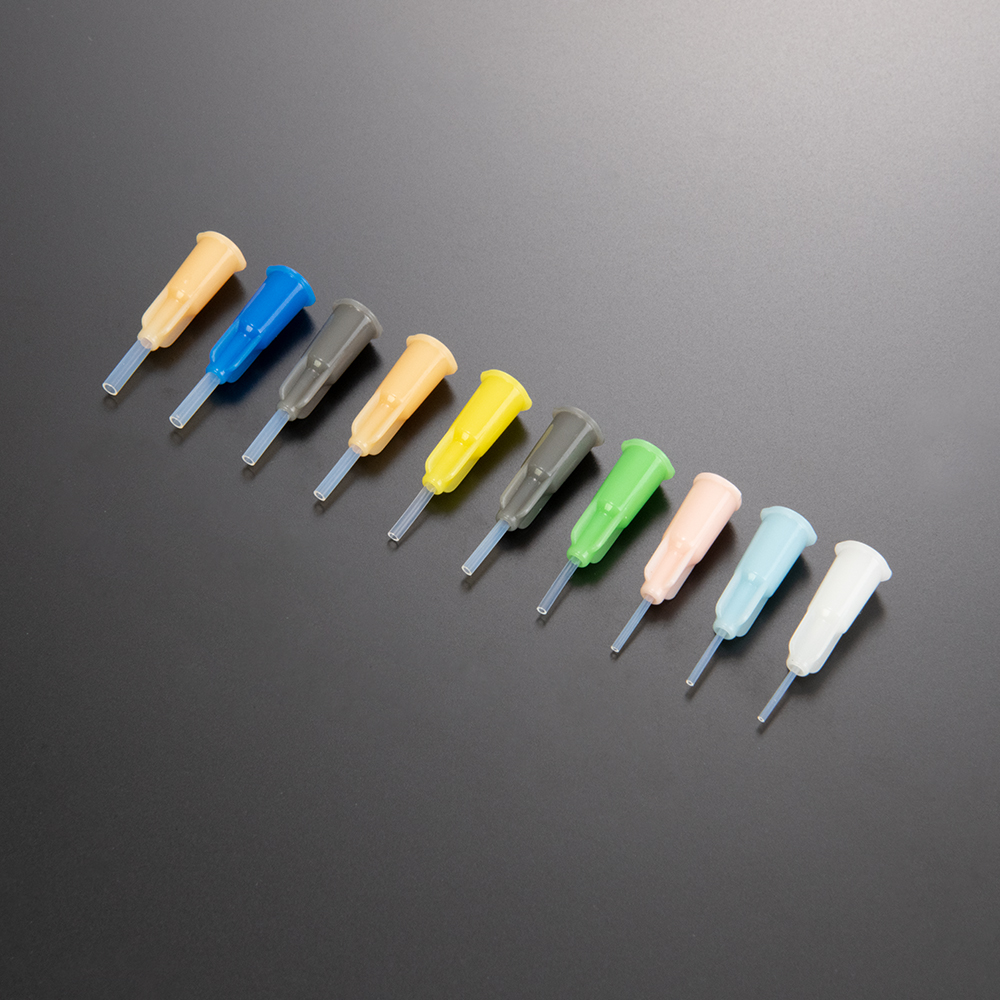

PTFE Nozzle
Needle material:
Fluorine resin
Needle base material:
Polyacetal

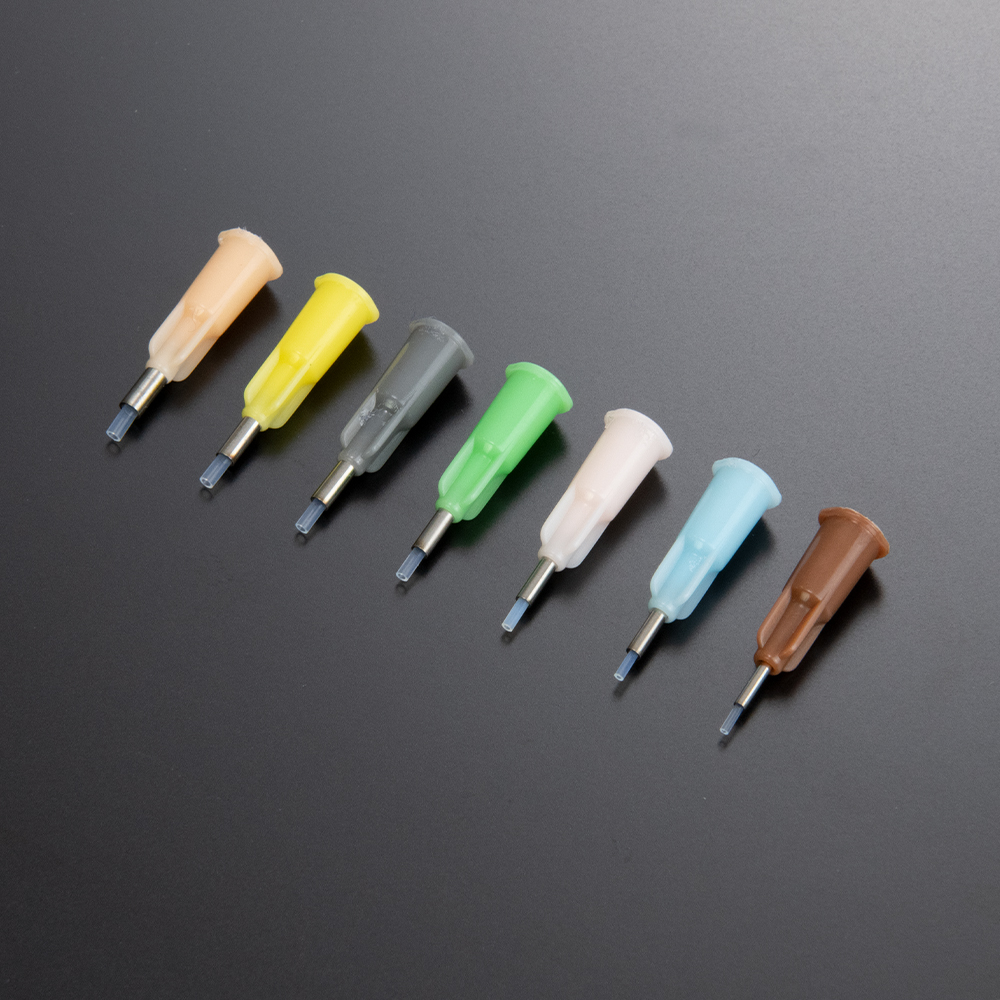

SUS guide PTFE nozzle
Excellent performance in high-precision dispensing of anaerobic fluid materials
Best suited for dispensing fluid materials that cannot be used with metal needles.
Stainless steel guide is attached to prevent the needle tip blur.
Needle material:
Fluorine resin
Guide material:
Stainless steel
Needle base material:
Polyacetal

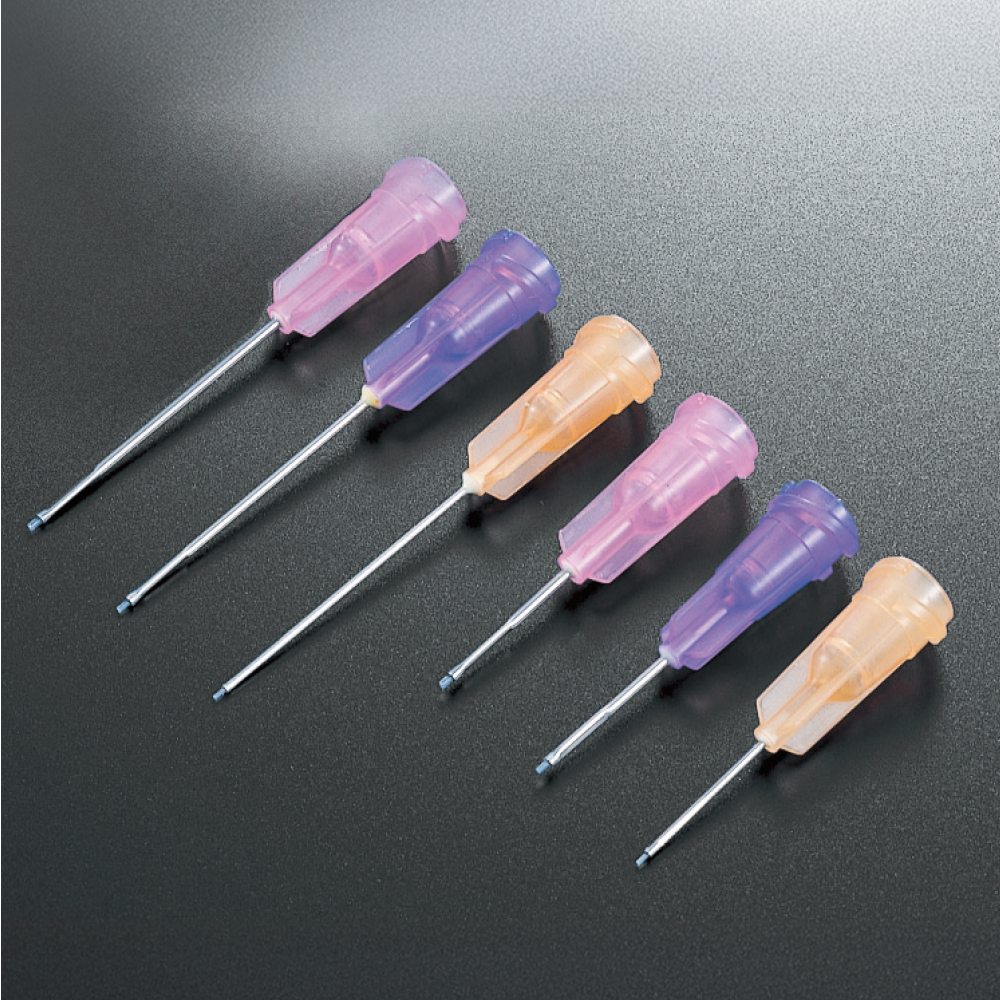

SUS guide PTFE nozzle
Ultra-fine needle type
Needle material:
Fluorine resin
Guide material:
Stainless steel
Needle base material:
Polypropylene

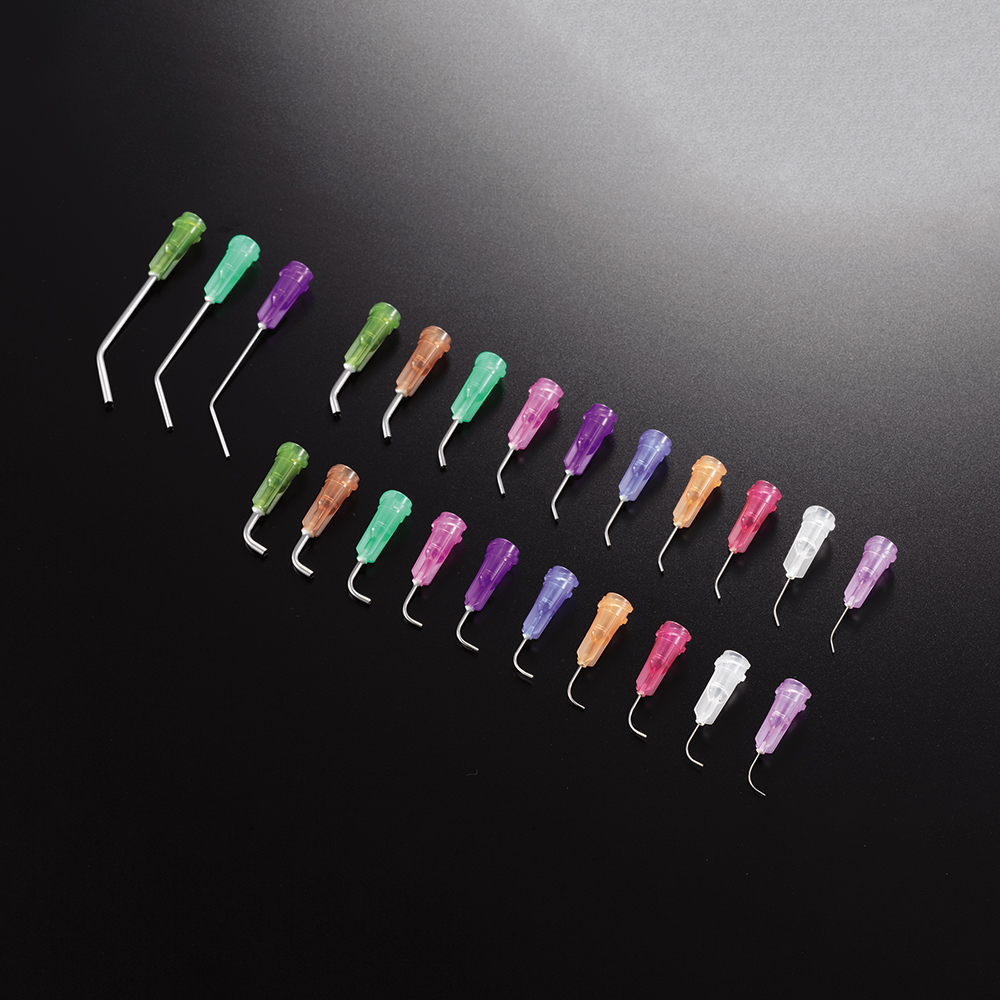

Curve needle
Best suited for dispensing to the inner surface of a workpiece
Two types of angles and a wide variations allow for various applications.
Double thread screw design enables the needle to be installed securely on the syringe.
Needle material:
Stainless steel
Needle base material:
Polypropylene

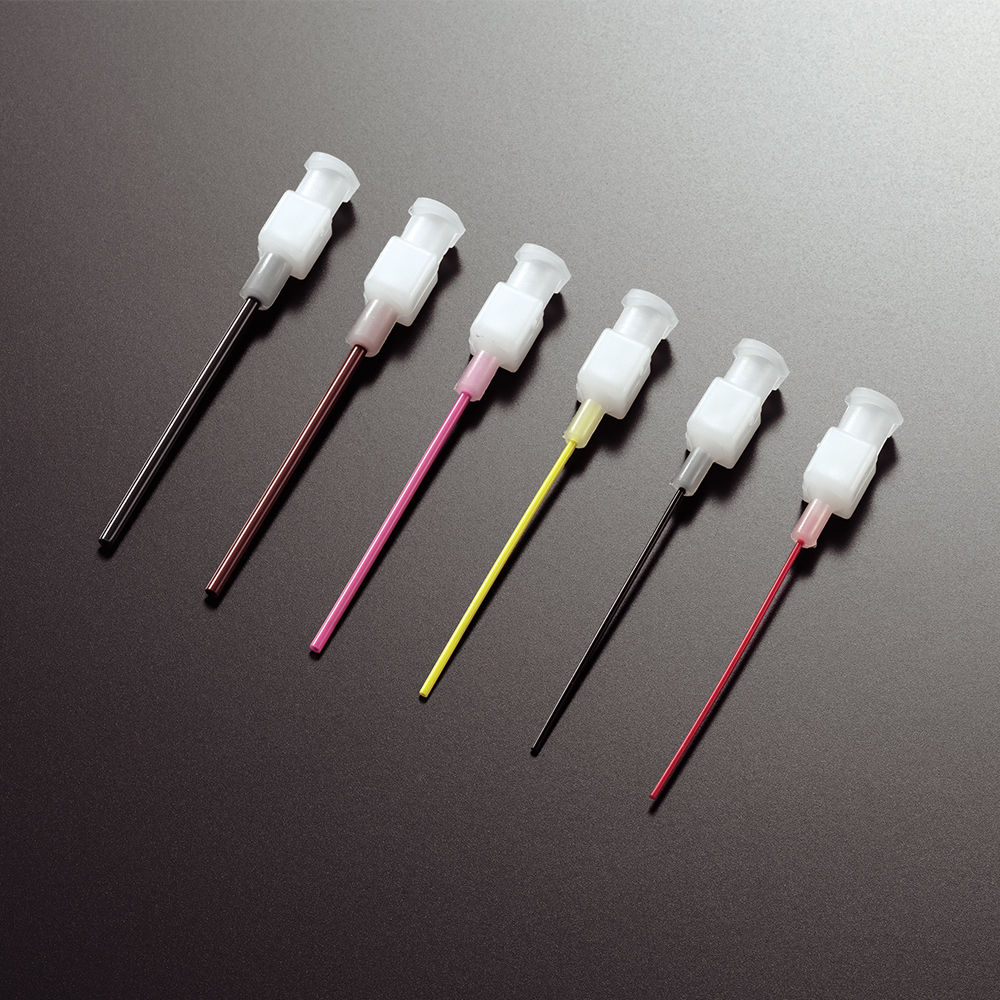

Soft needle
Soft touch, and no damage on workpiece
Soft and flexible needle prevents damage to workpieces and reduces a fraction defective.
Especially effective for dispensing onto narrowly arranged workpieces. Can be used for dispensing anaerobic fluid materials.
Needle material:
Polypropylene
Needle base material:
Polypropylene
